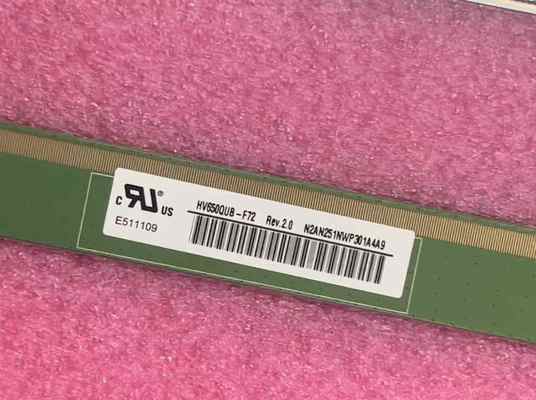

BOE 65Inch TV sets LCD Display Screen HV650QUB-F72 400CCD / M2 68PPI 3840*2160Pixels

The HV650QUB-F72 is a 65 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, 10 bit, Matte , ADS, 60Hz, Dual-gate. Based on its features, einklcd recommend that this model be applied to TV Sets etc.Built-in 6 source chips driver IC. According to the information stored in einklcd this model mass production on Q1, 2023, Now this model is in production. We inputted this model's specification on Jan 11 2023 for the first time, and the latest update on Apr 27 2025. If you want to embed HV650QUB-F72 CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The HV650QUB-F72 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N: HV650QUB-F72
Diagonal Size: 65"

Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution 3840(RGB)×2160, UHD 68PPI

Pixel Format: RGB Vertical Stripe
Active Area1428.48(W)×803.52(H) mm

Bezel Opening-
Outline Dim.1440.48(H)×818.02(V) ×1.34(D) mm

Treatment Antiglare (Haze 1%), Hard coating (3H)
Luminance 0 cd/m²

Contrast Ratio: 1400:1 (Typ.) (TM)
View DirectionSymmetry

Response Time 10 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode ADS, Normally Black, Transmissive
Plate Thickness 0.50+0.50 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array DepthTransmittance5.2% (Typ.)(with Polarizer)
Support Color1.07B 99% sRGBLight SourceNo B/L
Weight: 3.45Kgs (Typ.)

Designed For: TV Sets
Frame Rate: 60Hz

Touch Panel: Without
D-IC Detail COF Built-in 6 source chips
Interface Type CEDS , 136 pins Connector
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
